Description

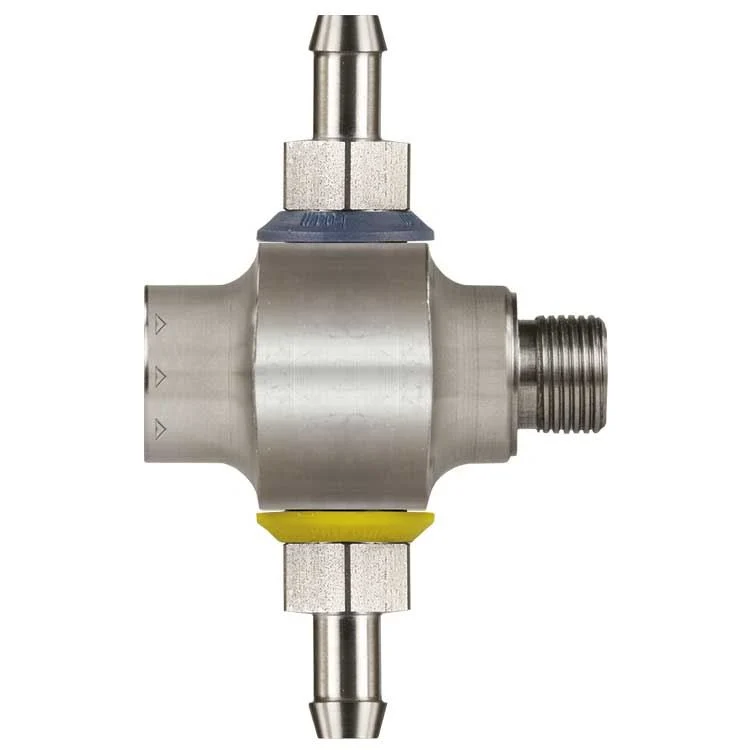

Suttner ST-166 Stainless Steel Dual Chemical Injector w/18 Metering / Dosing Nozzles, 4.5, 5000 PSI, 3/8″ F x 3/8” M
Features• Food grade quality and specifications• Durable Stainless Steel housing• 18 Metering / dosing nozzles included (See 3rd picture)• Uses .35″ I.D. Hose
Specifications • Nozzle/Orifice Size: 4.5• Max Flow Rate: 18 GPM• Min Flow Rate: 1 GPM • Max Pressure: 5,000 PSI• Min Pressure: 1,000 PSI• Max Temp: 194° F.• Inlet: 3/8” Female• Outlet: 3/8” Male• Hose Barbs (2): .35” ID hose• Weight: 0.75 lb
Please use Nozzle Chart to determine proper nozzle size
Note: If between sizes, choose the larger nozzle size
Nozzle Chart
See the ST-166 System Diagram below to determine the foam components needed
ST-166 System Diagram
