Description

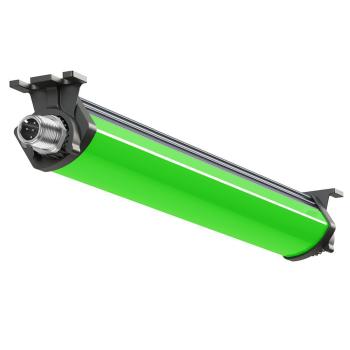

The SIGNALED II RGB-W, 520 mm (~20,47′) is a versatile LED surface-mounted light with RGB LEDs and a separate white light strip. Each LED color has a power of ~14.4 W (White, ~4.3 W (Red), ~2.88 W (Green), and ~4.32 W (Blue), and the luminous flux is 2300 lm (White), 276 lm (Red), 504 lm (Green), and 168 lm (Blue). With a beam angle of 120′, the light is evenly distributed.
The connection is via a M12 A-coded connector with 24V DC – 10% +7% (RGB). The luminaire is certified with protection rating IP54 and protection class III, and operates in a temperature range of -10 ‘C -> +50 ‘C (14 ‘F -> 122 ‘F). The lifespan is over> 100.000 h (L80/B10). The housing is made of aluminum and the cover is made of polycarbonate, soft, with dimensions of 25 mm x 30 mm (~0,98′ x ~1,18′) x 520 mm (~20,47’) and a weight of 420 g (~15 oz) (gross weight 500 g (~18 oz).
The luminaire provides even, colorful light for visibility and safety and is suitable for machines and equipment without chip exposure and coolant, such as bending machines, punching machines, as well as conveyors, roller doors, and logistics workstations. The included brackets allow for fixed or movable installation.Cable sold separately. Cable sold separately.
