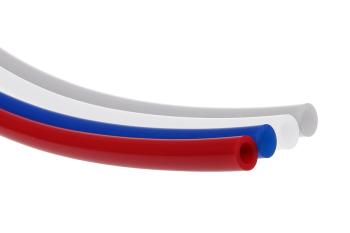

CO PT0606-50RBWC. Coilhose Pneumatics Polyurethane is extruded from high-quality ether-based resin. This means that the tubing will not degrade over time when exposed to water. Polyurethane tubing offers increased flexibility, resistance to kinking and a broad temperature range. All Coilhose polyurethane tubing is 95A durometer and can be used with either push-to-connect fittings or hose barbs. Compatible with Coilock Push-to-Connect fittings and Poly-Tube fittings.
Temperature Range: -40’F to 165’F
Vacuum Rating: Up to 28″ Hg
Diameter Tolerances: 1/8″ – 9/16″ +/- .005″, 3/4″ +/- .007″
Working Pressure: 3:1 Safety Factor
Hardness: 95A
UV Stabilized: Yes
.Outside Diameter: 3/8″
Inside Diameter: 1/4″
Overall Length (ft): 50′
Color: Red, Blue, White, Clear
Material: 95A Polyurethane
Working Presure @ 75′: 170 psi
